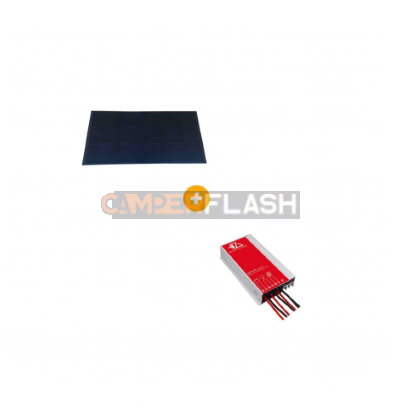

IBC solar panel kit - 155W bluetooth MPPT controller - 15A

Solar panel kit 155w mppt 15a

Manufacturer/distributor: NARBONNE

Manufacturer code: PACK1381

Technology: IBC
cell efficiency: 23%
frame: Black aluminium
type of fixing: Bonding
finish: Full Black
dC connectors: Pre-assembled with 5 m cable
protection/safety: backstop diode + UV-resistant cable
supplied with: roof loop
certifications, approvals: CE, IP65
nominal power: 155 W
product dimensions in mm (W x L x H): 1255 x 585 x 44.5
net weight: 9.1 kg
voltage at maximum power: 26.8 V
current at maximum power: 6.65 A
operating voltage: 22.5 V
operating current: 6.23 A

Technology: MPPT

Technology: MPPT
low-voltage disconnection (Gel, AGM, Liquid): 11.2 V
target charge voltage (lithium): 14.4 V
recovery charging volts (lithium): 14 V
low-voltage disconnection (lithium): 10.6 V
low-voltage reconnection (lithium): 11.4 V
load protection 0 °C (lithium): Sì
temperature compensation: -4.17 mV/K per cell (added, equal) -3.33 mV/K per cell (floating)
battery type: AGM, liquid, gel, lithium (default: AGM)
bluetooth: Sì
day/night delay: 0 min
mPPT monitoring range: (battery voltage + 1.0 V) Voc*0.9
ambient temperature: -35 °C +60 °C
supplied with instructions
certifications/approvals: CE environmentally compatible R10
warranty: 24 months
nominal voltage: 12 V / 24 V (automatic recognition)
max. charging current: 15A
support voltage (gel, AGM, liquid): 14.5 V / 29 V
equal voltage (gel, AGM, liquid): 14.8 V / 29.6 V
float voltage (Gel, AGM, Liquid): 13.7 V / 27.4 V
low voltage reconnection (Gel, AGM, Liquid): 12V / 24V
overvoltage protection (Gel, AGM, Liquid): 15.5 V / 31 V
maximum battery voltage: 35 V
maximum solar voltage: 55V
max. panel power(s): 200 W / 400 W
day/night threshold: 5V/10V
output current: 15 A
self-discharge: 6 mA
product dimensions (W x L x H): 85.8 x 145 x 30 mm
net weight: 0.60 kg
ambient temperature: -35 °C +60 °C
wire size: pre-wired 4 mm²
iP index of protection: IP67

Features

Power : 155 W
